Algorithm formalization
Algorithm composition
Linear algorithm
As we saw in a previous chapter, an algorithm :
- is the main description of a problem, or the description of a step from the main algorithm;
- starts with the keyword BEGIN;
- ends with the keyword END;
- is composed by simple words (often action verbs) which describe the operation.
Example |
|
BEGIN prompt; get_name; write_hello; exit_app; END |
|

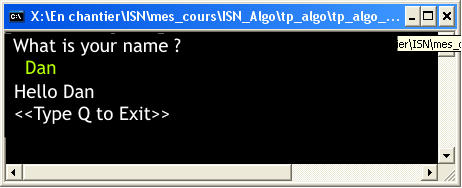

In this simple example :
- prompt displays the text "What is your name ?";
- get_name waits for the typing by the user;
- write_hello writes the text "Hello" on the screen, followed by the text written before;
- exit_app writes the text "<<Type Q to Exit>> on the screen and closes the application when the user types the letter Q.
Each of these steps could be a complex operation.
In this case, it's possible to make an algorithm for each of them. We'll talk about sub-algorithm in this case.
An Algorithm is also composed of symbols (constants and variables), of functions and procedures and of some standardized pseudo-codes.
Symbols
It's possible to define a symbol which is equivalent to a constant or variable value.
Constant symbol
A constant is a piece of information which never changes in an algorithm.
In the previous example, the text "What is your name?" is a constant string.
The number Π = 3,1416.... is a constant number.
Variable symbol
A variable is a piece of information which changes all along the algorithm or in an algorithm's life.
In the previous example, the name changed (one time Dan, another time Sally, etc...); it's a variable string.
Type of a constant or a variable
A constant or a variable actually is a piece of memory in the computer. It's necessary to define the number of memory cells needed by each variable or constant.
A byte needs more memory than a bit, a string more than a byte, etc....
Common types are :
- bit : 0 or 1
- byte : 8 bits from 0 to 254 (or -128 to +127)
- integer : from -32768 to 32767
- word : it's a double byte
- double (word) : 32 bits
- float (ing number) : 32bits to describe a rational number with a sign.
- char(acter) : it contains one letter
- string : it's a sequence of characters (most of the time with a maximum of 256)
The get_name and write_hello algorithm could be written like this :
var name:string; //name is a global string variable |
||||||
Algorithm get_name BEGIN read(name); END |
Algorithm write_hello BEGIN write('Hello'+name); END |
|||||
Explanation |
||||||
read is a standard command which affects to its argument the string typed by a user. The ENTER key defines the end of the word. For example when the user types the keys on the keyboard:
the variable name is equal to DAN |
write is a standard command which writes the argument text on the screen. This command displays the text between quotes. When there are no quotes, it should be a constant or a variable and in this case, this command displays its value. For example, when name=Sally, the screen display will be Hello Sally. |
|||||
Global and local symbols
- A global symbol is a symbol declared in the main Algorithm and is accessible in multiple scopes (in all the sub algorithm)
- A local symbol is declared within a sub algorithm and is not accessible in the other one.
In our example, the variable name must be accessible in get_name and in write_hello. It must be a global variable.
Procedure and Function
In a program's source code, the main program is the translation of the main algorithm.
The sub-algorithm could be a procedure or a function.
Procedure
A procedure is a part of a program (a sub-algorithm) that performs something : displaying a piece of information, saving a file, printing a text, etc....
In our example prompt, get_name, wite_hello are procedures.
Function
A function is also a part of a program that performs and calculates something. It returns a result to the caller.
Example :
function RandomVal :integer;
begin
// Get a random number from 1 to 3
// Return this value as a int type in the return variable, Result
Result := RandomRange(1, 3);
end;
To use this function : Aleat:=RandomVal;
Pseudo-code
Pseudo-codes are special commands for
- conditional statement : IF.... THEN.. ELSE, CASE.... OF.
- Iterative statement : WHILE... DO, REPEAT...UNTIL
